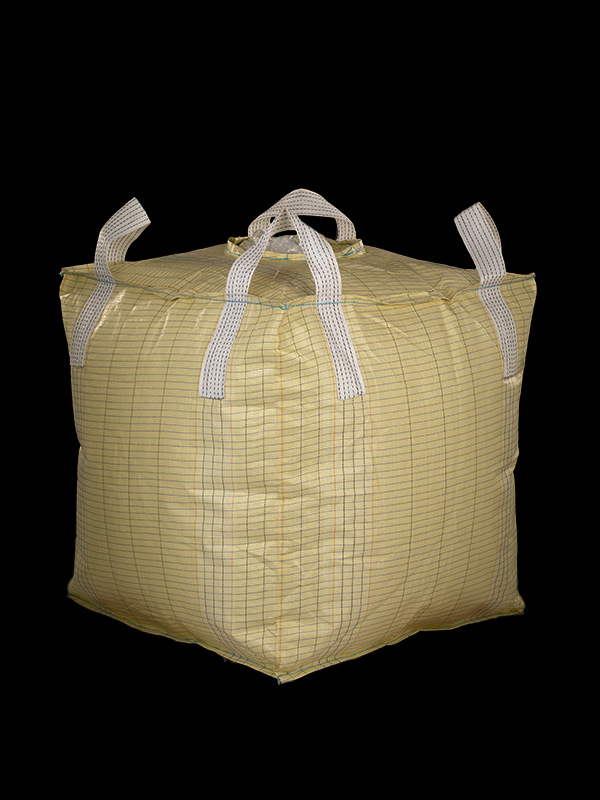

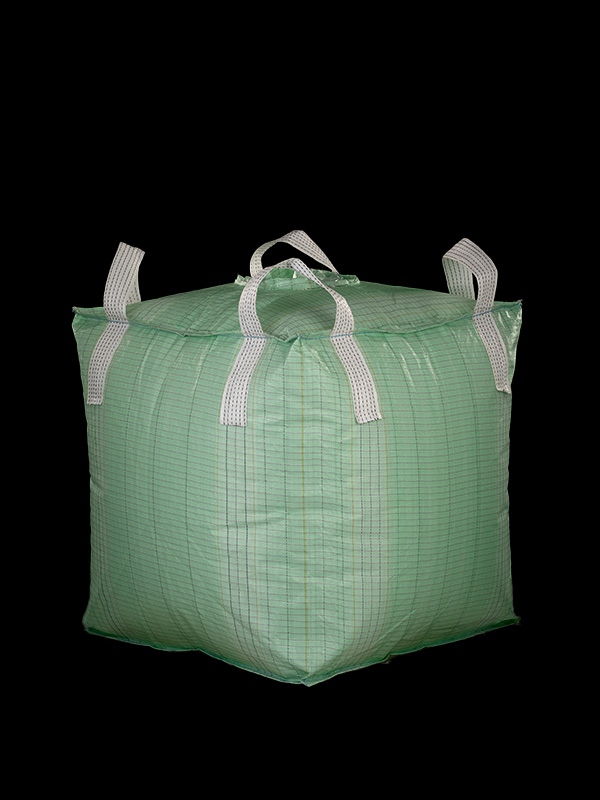

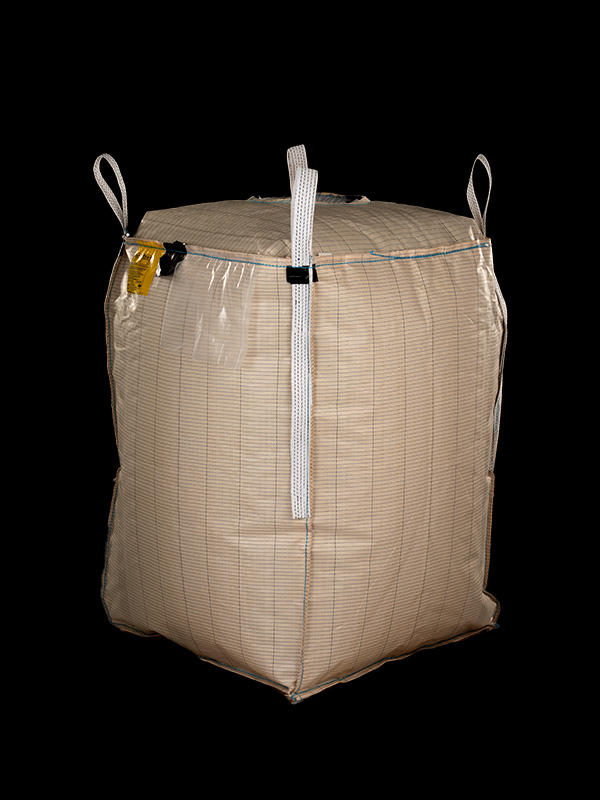

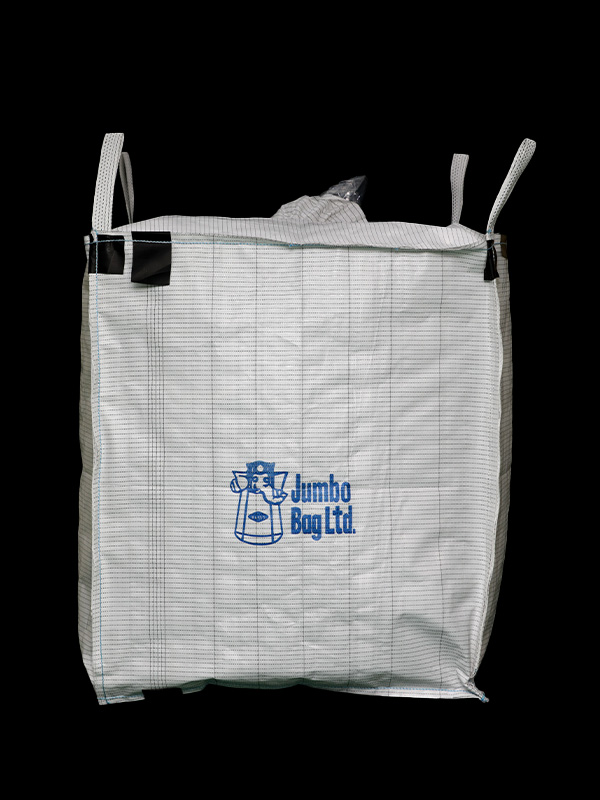

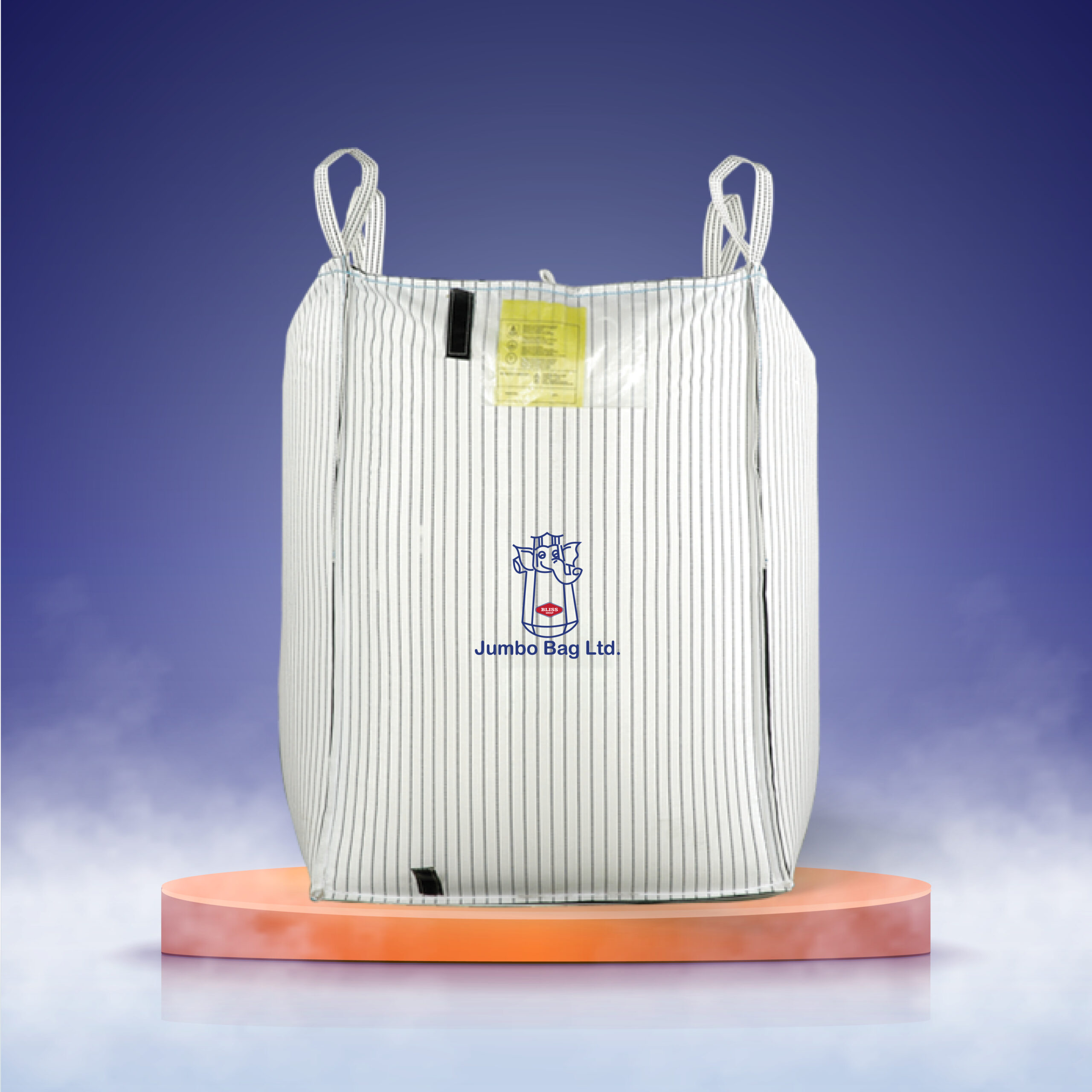

Type C Jumbo Bags (Conductive)
FIBCs/Bulk Bags
Jumbo Bag Ltd has over a decade of experience in producing high-quality Type C bags for various applications in the Global Market.
The Type C fabric of Jumbo Bags Ltd is specially designed and woven with conductive tapes in both the warp and weft directions to ensure uniform conductivity properties throughout the jumbo bag/FIBC. Special conductive material tapes are used to interconnect all the components, thereby achieving perfect continuity.
We offer Type C bags with or without liners, with or without lamination, and in a range of designs, including Circular, U-panel and Four-panel, Baffle, Round bag, etc. in sizes ranging from 250 kgs to 2500 kgs.
Liners, such as L2 and co-extruder conductive liner, are supplied with Type C Jumbo Bags to meet customer requirements. Tabbing, gluing, or flange sewing are used for liner attachment. Connecting the inner liner and outer bag enhances bag performance during filling and discharge operations.
All of our bags are tested for conductivity based on IEC 61340 standards, both in-house and by third-party labs like LABORDATA in Germany and Dekra (Chilworth, USA). At Jumbo Bag Ltd, we take pride in providing our customers with high-quality Type C bags that are rigorously tested for safety and performance.
Our Customized Type C
| Fabric | Made of Polypropylene UV Stabilized in Various GSM & Coloured fabrics |
| Design | U panel, Circular, 4 Panel, Baffle and Baffle Lined, UN designs |
| UV Stabilization | All components of the FIBCs are UV stabilized |
| Safe Working Load | Up To 2500 kgs (5500lbs) |
| Safety Factor | Up To 8:1 |
| Filling Spout | Customized |
| Discharge Spout | Customized |
| Liner | Static protective Liner, Formfit Liner, Glued Liner, Sewn Liner. With & without Tabbing arrangement. |
| Printing | Upto 4 colors and upto 4 sides. |
| Traceability | UNIQUE ID is provided for each and every bag to track back from resin stage to finished Bag stage. |
| Sift Proof | Single, Double & Triple side Sift Proof are provided. |
| Test Certificate | In-house test certificate will be provided for all the shipments. Our Jumbo Bags get tested with International test House also. |
